Features

High-pressure resistant, equipped with a pressure-equalising air vent

Reinforced bearing support design to improve the fit between the rotor and valve body

Air seal and double-lip oil seal design for the shaft seal to reduce leakage

Low clearance between the rotor and housing to improve feeding and discharging efficiency

Technical Specifications

Pressure Range: <1.5 bar

Temperature Range: -20 to 250 °C

Flange Standard: ANSI 150#, HG, SH, GB or client’s standard

Medium: Powder

Outboard bearings: Separated from product by purged seal

ATEX (optional): Suitable for use in hazardous environments

Accessories (optional): Exhaust hopper, material shoe, speed switch, bracket, compensator, etc.

Product Advantages

Precision air seal + oil seal + outboard bearings

High-efficiency sealing, extending equipment service life

High-precision polished surfaces

Enhancing equipment efficiency and service life

Robotic automatic welding

Increasing equipment strength and aesthetic appeal

Detailed view of the rotary valve

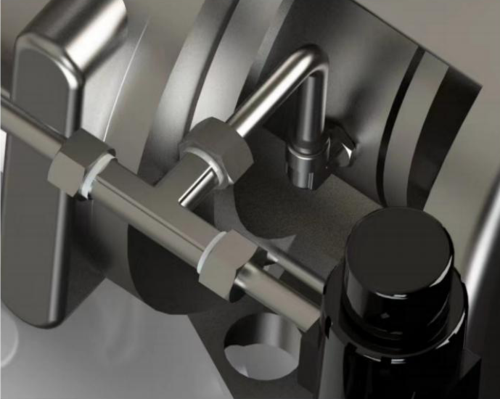

1. Precision air seal + oil seal + external bearings

2. Highly effective sealing, extending the service life of the equipment

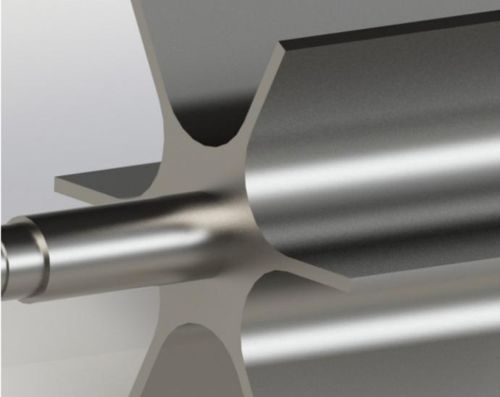

1. High-precision polished surface

2. Increased equipment efficiency and service life

1. Automated robotic welding

2. Enhancing the strength and aesthetic appeal of the equipment
