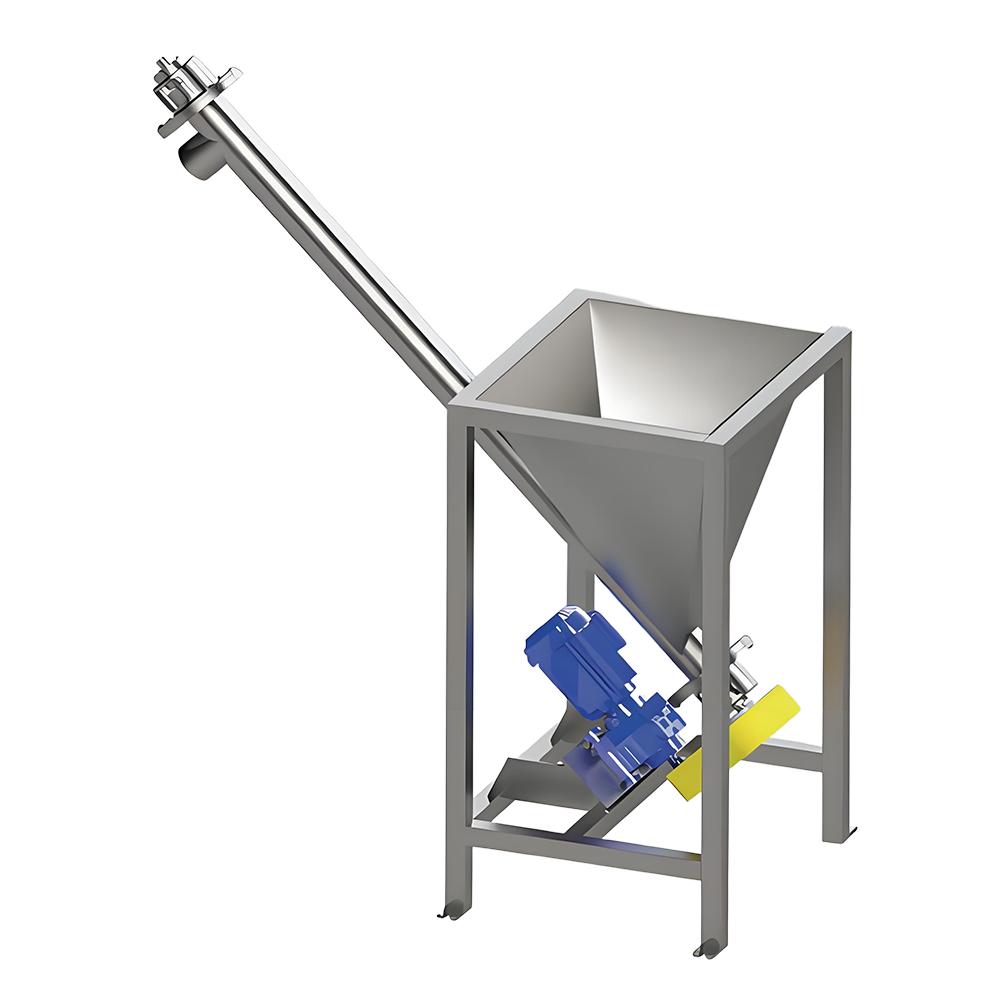

Inclined screw conveyors, also known as mobile screw conveyors or auger conveyors, are suitable for conveying bulk materials in industries such as chemicals, metallurgy, papermaking and construction, including cement, pulverised coal, carbon black, soda ash, flour, grain and pulp.

As this machine can be moved freely and is capable of continuous conveying in any position—whether horizontal, inclined or vertical—it is particularly well-suited to mobile field operations. Its advanced design and superior performance are especially evident in applications such as concrete mixing plants and the storage and transhipment of bulk materials.

Details of the various models are as follows:

LS - X75: Screw diameter 75 mm, conveying length 1000 mm, conveying capacity 100 kg/h, materials: 304, 316L, Q235, 2205, etc.

LS - X90: Screw diameter 90 mm, conveying length 1000 mm, conveying capacity 150 kg/h, materials: 304, 316L, Q235, 2205, etc.

LS - X100: Screw diameter 100 mm, conveying length 1000 mm, conveying capacity 200 kg/h, materials: 304, 316L, Q235, 2205, etc.

LS - X150: Screw diameter 150 mm, conveying length 1000 mm, conveying capacity 1200 kg/h, materials: 304, 316L, Q235, 2205, etc.

LS - X200: Screw diameter 200, conveying length 1000 mm, conveying capacity 3000 kg/h, materials: 304, 316L, Q235, 2205, etc.

LS - X250: Screw diameter 250, conveying length 1000 mm, conveying capacity 5000 kg/h, materials: 304, 316L, Q235, 2205, etc.

LS - X300: Screw diameter 300 mm, conveying length 1000 mm, conveying capacity 8000 kg/h, materials: 304, 316L, Q235, 2205, etc.

Screw conveyor dimensions can be customised to meet customer requirements
