Applications

Suitable for powdered materials

Suitable for metered continuous feeding

Suitable for feeding materials in gravity discharge systems

Features

Reinforced bearing support design to improve the fit between the rotor and valve body

Shaft seal utilises custom PTFE packing and a double-lip oil seal design to reduce leakage

Low clearance between the rotor and housing to improve feeding and discharging efficiency

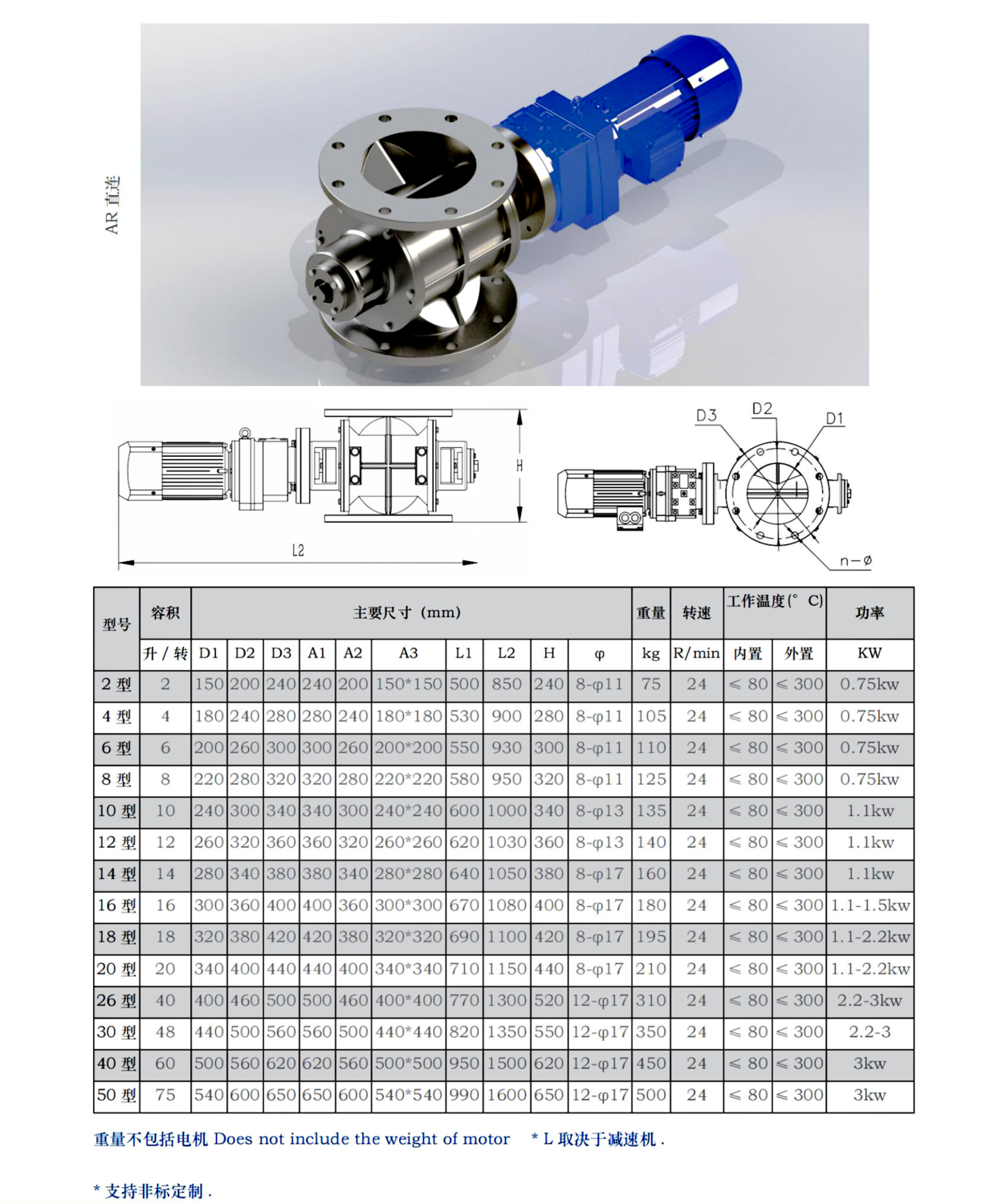

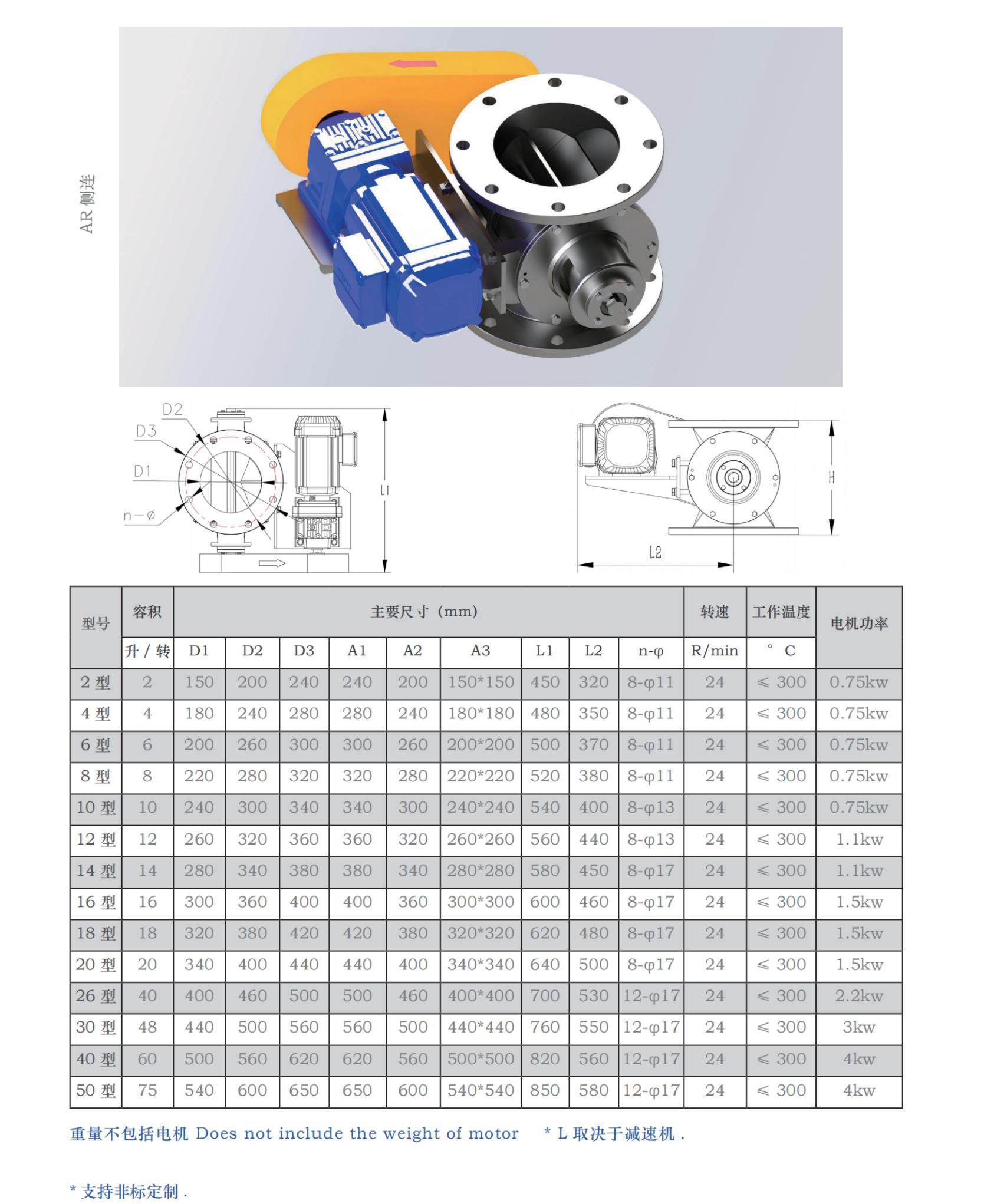

Technical Specifications

Pressure Range: <1.5 bar

Temperature Range: -20 to 250°C

Flange Standard: ANSI 150#, HG, SH, GB or client’s standard

Suitable Medium: Powder

Outboard bearings: Separated from the product by a purged seal

ATEX (optional): Suitable for use in hazardous environments

Accessories (optional): Exhaust hopper, material shoe, speed switch, bracket, compensator, etc.
